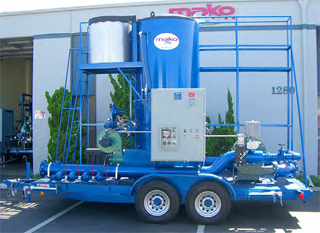

2000 CFM Makotherm DG- Thermal Catalytic Oxidizer/Tank De-Gassing System

Standard Features
• Trailer Mounted System
• Dilution / Process Valves
• Centrifugal Fan
• Blower Re-circulation Valve
• 20 Horsepower TEFC Motor
• Oxidizer Chamber
• Flex Hose Storage Racks
• Excess Air Packaged Burner
• Supplemental Fuel Train
• Flame Arrestor
• Digital Temperature Controller
• Digital Dilution Controller
• Pitot Tube / Pressure Transmitter
• Digital Chart Recorder

Standard Options
• Stainless Steel Heat Exchanger
• Platinum Coated Catalyst Cell
• Remote Telemetry
• Single Phase System
• Trailer Mounted Storage Bins
• On Board Generator
• LEL Monitoring
• UL Listed Electrical Enclosure E306379

Standard Performance Specifications

Trailer Dimensions = 102" Width x 16' Length x 13' Height
3/16" Heavy Duty Steel Construction Throughout
Electrical Requirement = 208/240 Volt/3 Phase/100 Amp
Electrical Requirement = 208/240 Volt/1 Phase/150 Amp
Fuel Requirement = LPG or Natural Gas / 5 PSI / 4,000SCFH
Process Flow = 2000 CFM and up to 3" Hg. Vacuum
VOC Loading = 4,000,000 BTU / Maximum
Destruction Efficiency = 98%+
