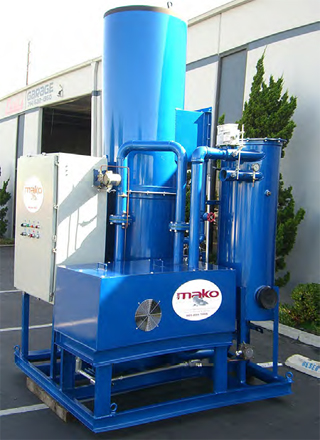

500 CFM Makotherm MV- Thermal Catalytic Oxidizer/Medium Vacuum System

Standard Features
• Small Footprint Skid Mounting
• Entrained Liquid Separator
• Dilution / Process Valves
• Stainless Steel Transfer Pump
• Positive Displacement Blower
• Blower Re-circulation Valve
• 20 Horsepower TEFC Motor
• Sound Enclosure
• Oxidizer Chamber
• Excess Air Packaged Burner
• Supplemental Fuel Train
• Flame Arrestor
• Digital Temperature Controller
• Digital Dilution Controller
• Pitot Tube / Pressure Transmitter
• Digital Chart Recorder
• UL Listed Electrical Enclosure E306379

Standard Options
• Trailer Mounted System
• Stainless Steel Heat Exchanger
• Platinum Coated Catalyst Cell
• Remote Telemetry
• Totally Enclosed System
• Single Phase System
• UL Listed Electrical Enclosure E306379

Standard Performance Specifications

Skid Dimensions = 7' Width x 7' Length x 13' Height
3/16" Heavy Duty Steel Construction Throughout
Electrical Requirement = 208/240 Volt/3 Phase/100 Amp
Electrical Requirement = 208/240 Volt/1 Phase/200 Amp
Fuel Requirement = LPG or Natural Gas / 5 PSI / 750SCFH
Process Flow = 500 CFM and up to 12" Hg. Vacuum
VOC Loading = 15,000 PPMV Maximum
